DX shack FG
Guadeloupe
Rig &
ANTs
29NOV 2008

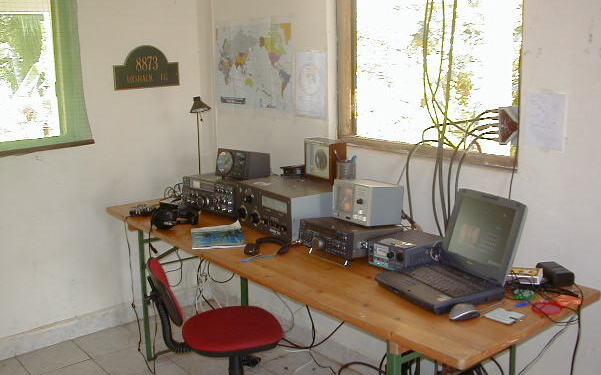

Rigs (Photo is 2001)
Basic
* Transceiver
:
Kenwood TS930
(HF 100W, CW Filter)
-----------------
Linear Amprifier.
Alpha 76PA
(8874x3 with FAN)
*Option nal@ Linear AMP :
$15/day@and Tubs deposit ($500)
(Do not working Nov .2008)
-------------------------------
ANT Rotor:
1] Emoto 8000 for 100feet Tower
(Do not working Nov .2008)
2] Yaesu G-800DXA for ALUMA tower 60feet.
* ANT.SW:Delta -4
* Paddle : Bencher + ( 4Ch memory Keyer KEYER
2000)
* Foot SW,
* Head phone, Heil HC-5
* Ham clock( world 24 hours)
* For contestr : Pleaase bring own your CW
paddle,Head phone and loging PC.( We have
not PC for you.)
Rig and ANTs is easy broken, so that
Please ask to FG5BG todays Rig and ANTs condtions.
ANTs & Towers
* Force 12 : C4XL (7,14,18,21,24,28 Mhz Beam )
* Cushcrft : A4S (14,21,28Mhz 3el)
* Dipole(inv V): 1.8Mhz 3.5/3.8Mhz
* 50Mhz 5 el Yagi,(SCDXA donated)
* Tower 1: Rhon 100 feet's
* Tower 2: ALUMA Crank up 60 feet's

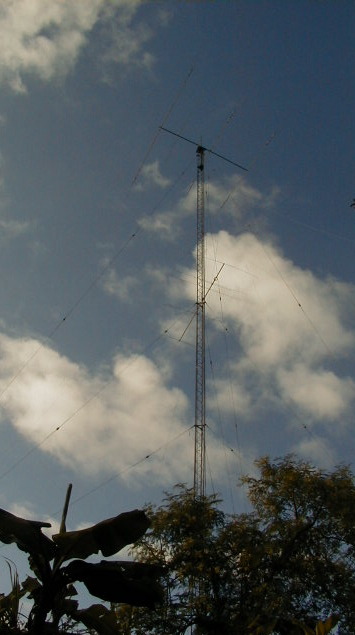

A4S 100 feet Rhon Tower
+ 6m 5el Yagi.
(No rotetable : NOV.2008)
@

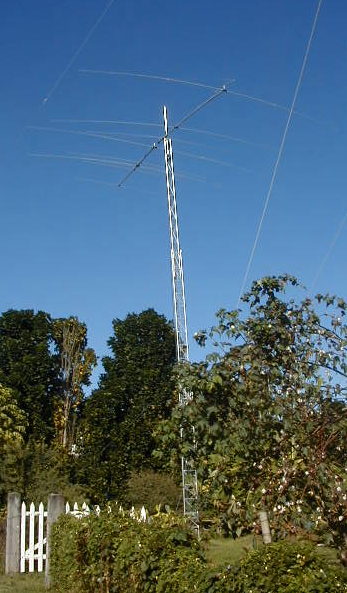

C4XL +ALUMA 60 feet Tower

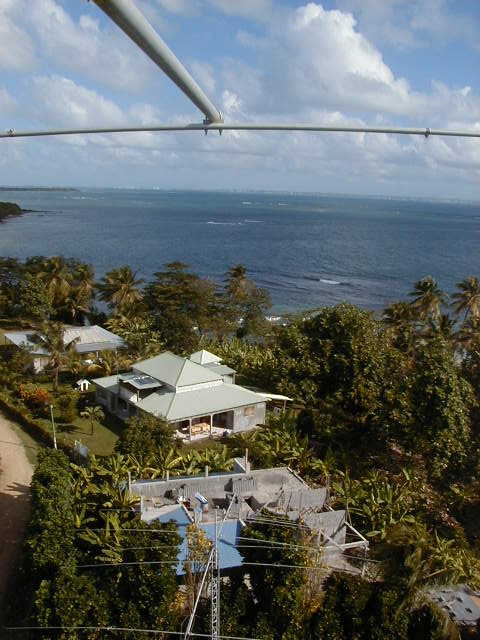

View to EU from top of the 100feet tower
with A4S elment.
Note
If you need more ANTs:
There are no Coax cable in F island (only
3C2V for cable TV). but you can ge electric
wire for wire ANT at DIY shop, 2 km from
shack.

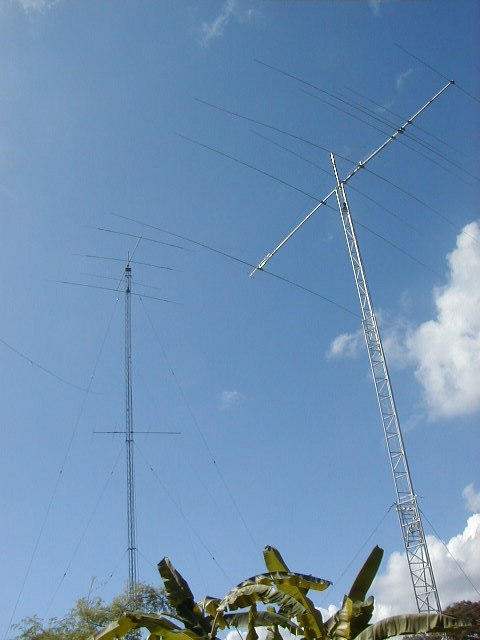

Blue Sky and Blue Caribbean Sea and two ANTs
